High-Efficiency DTH Drill Bit with Carburized Steel and Carbide for 57mm to 660mm Diameter Applications

Name: HighEfficiency DTH Drill Bit with Carburized Steel and Carbide for 57mm to 660mm Diameter Applications
Brand: SOLLROC
Price: 100 USD

Quality High-Efficiency DTH Drill Bit with Carburized Steel and Carbide for 57mm to 660mm Diameter Applications for sale

Place of Origin : Hunan, China

Brand Name : SOLLROC

MOQ : 1

Price : $100

Weight : 4.5 KG

Material : Carburized Steel and carbide

Diameter : 57mm to 660mm

Button type : Ballistic

Face Shape : Flat, convex, concave

Rock hardness : 200 Mpa to 260 Mpa

Drill hole diameter : 105mm-dia.254mm

Hammer inch : 1", 2", 3", 4", 5", 6", 8", 10", 12"

Bit Dia(mm) : 64mm-70mm, 70mm-95mm, 90mm-102mm, 105mm-152mm, 133mm-165mm, 152mm-254mm, 203mm-330mm, 254mm-380mm, 305mm-508mm

Bit Dia(inch) : 2 1/2-2 3/4", 2 3/4-3 3/4", 3 1/2-4", 4 1/8-6", 5 1/4-6 1/2", 4 1/8-10", 8-13", 10-15", 12-20"

Shank type : BR1, MACH20/BR2, M30/DHD3.5/BR3, COP44/DHD340/MACH44, COP54/DHD350R/MACH50, COP64/DHD360/SD6, COP84/DHD380/SD8/QL80/M80, SD10/NUMA100, DHD1120/SD12/NUMA120/NUMA125

Processing type : machining process

Air pressure : High air pressure

Rock formation : Medium-hard to hard abrasive

Compressive strength : 200 Mpa to 260 Mpa

Contact Now

Product Application

DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering. it has the advantage of high flatness, smooth hole wall, high rigid of drill rod and hammer, independent of high axial thrust, no limit of drilling depth, low cost of devices and easiness to maintain. At the drilling hole of dia.105mm-dia.254mm, a plenty of the DTH drilling tools are used.

Future

1.Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.

2.Recommended for eliminating hole deviation

3.Widely used drifting and tunneling

4.Bit face design is ideal for medium-hard to hard abrasive rock

Product Description

DTH Bits (DHD, Cop, SD, QL, Mission, Numa)

Hammer inch	Bit Dia(mm)	Bit Dia(inch)	Shank
1"	64mm-70mm	2 1/2-2 3/4"	BR1
2"	70mm-95mm	2 3/4-3 3/4"	MACH20/BR2
3"	90mm-102mm	3 1/2-4"	M30/DHD3.5/BR3 COP32/COP34/MACH303
4"	105mm-152mm	4 1/8-6"	COP44/DHD340/MACH44 SD4/M40/QL40/BR4
5"	133mm-165mm	5 1/4-6 1/2"	COP54/DHD350R/MACH50 SD5/M50/QL50/BR5
6"	152mm-254mm	4 1/8-10"	COP64/DHD360/SD6 M60/QL60/Bulroc BR6
8"	203mm-330mm	8-13"	COP84/DHD380/SD8/QL80/M80
10"	254mm-380mm	10-15"	SD10/NUMA100
12"	305mm-508mm	12-20"	DHD1120/SD12/NUMA120/NUMA125

Detailed Images

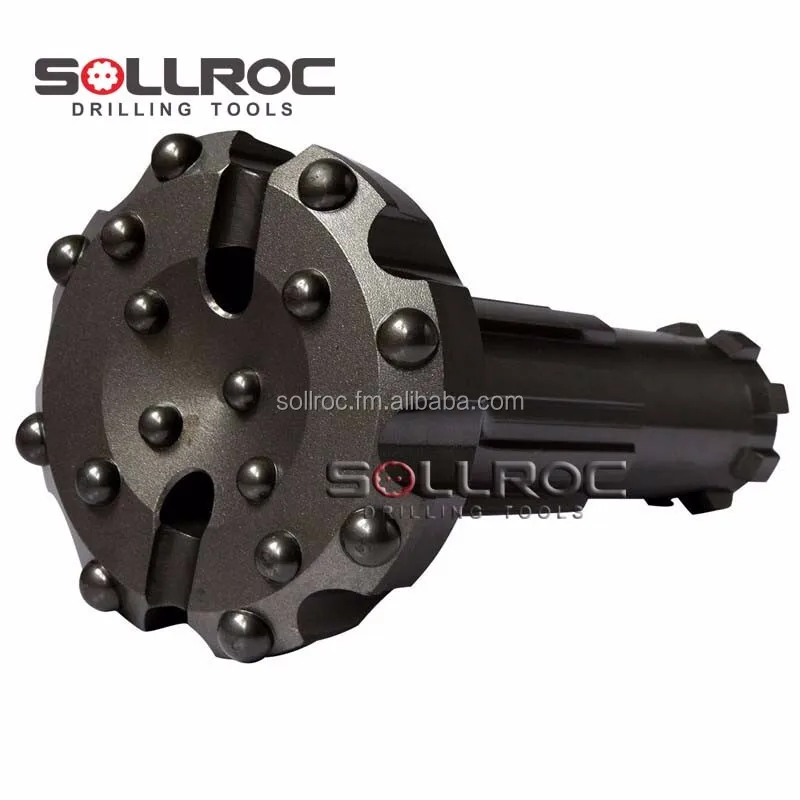

High-Efficiency DTH Drill Bit with Carburized Steel and Carbide for 57mm to 660mm Diameter Applications

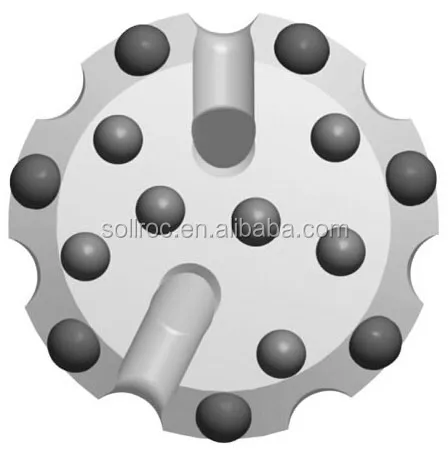

Concave

For medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.

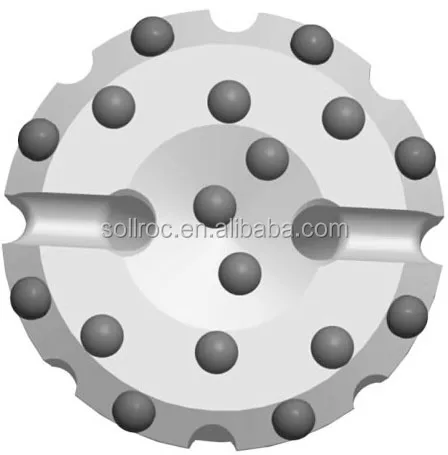

Convex

For high penetration rates in soft in medium-hard with low to medium air pressure. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but port hole deviation control.

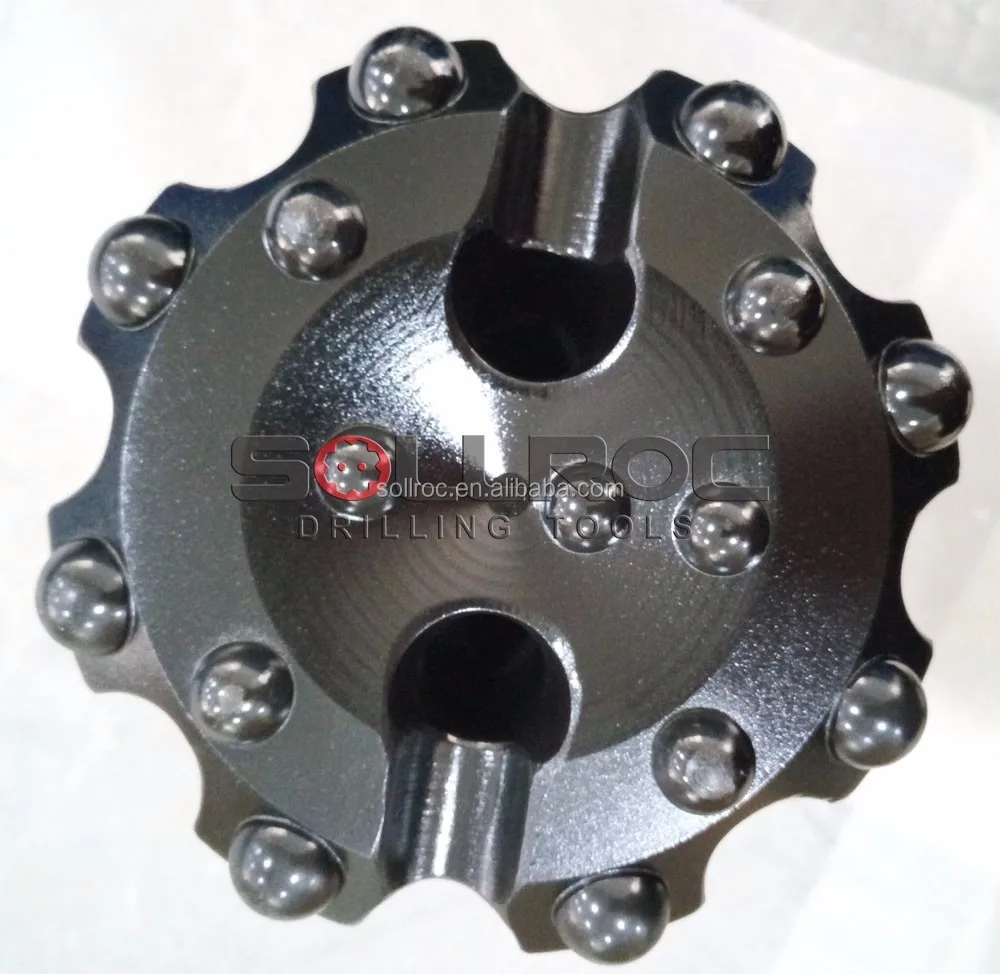

Flat face

This kind of face shape is suitable for hard to very hard and abrasive rock formation in applications with high air pressure. Good penetration rates an resistance to steel wash.

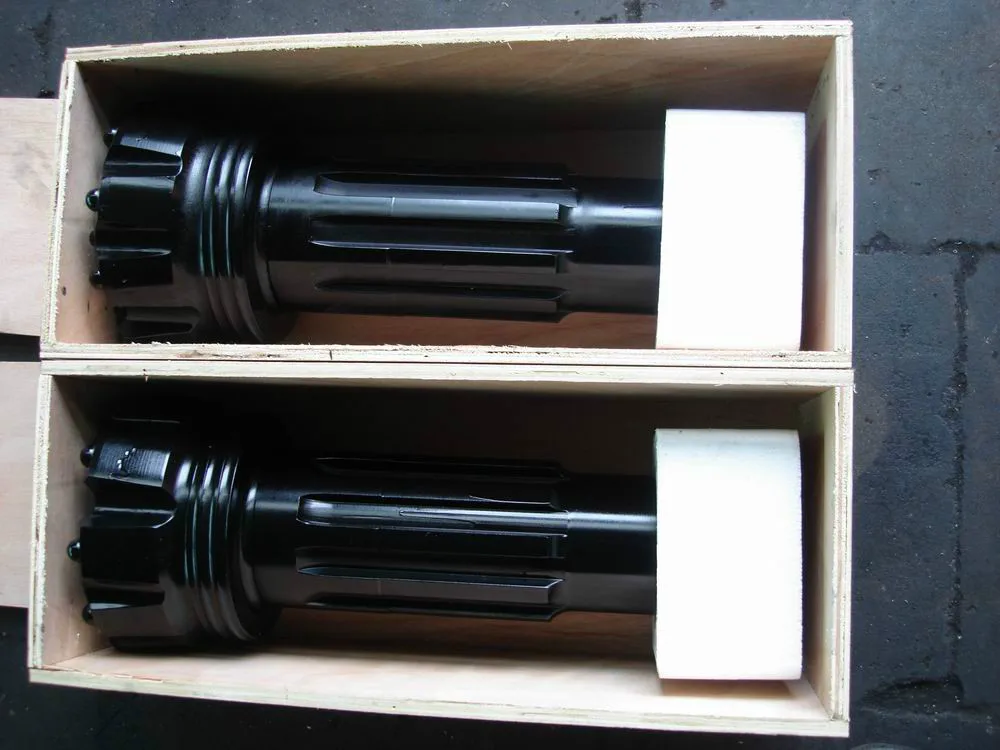

Packing & Delivery

Ply-wooden cases

Ply-wooden cases + pallet

Transportation: By sea, By air or by Express.
